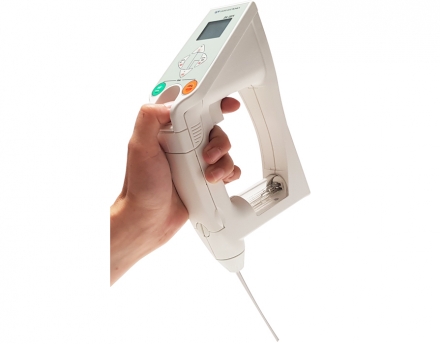

DENSIMETER DA 130 N

Electronic densimeter

The electronic densimeter DA 130 N is an indispensable and unique apparatus that offers multiple functionalities. This time-saving instrument measures a rich variety of scales : density of musts, Brix/Baumé degree, alcohol content of a distillate, etc.

Download our
PDF catalogue
Add to my quote request
  • 395000 Portable electronic densimeter
    Quantity:
    Add this item to quote

Références concernées

  • 395000Portable electronic densimeter

PRINCIPLE

The handling is easy : you simply need to immerse the sampling tube, push the trigger, and directly read the final result in the selected measurement scale.

ADVANTAGES

• Sampling volume and speed is single hand controlled (patent pending), operated either by right or left hand
• The cell can be viewed during measurement
• Light weight allows operators to feel tireless in the normal operations
• Viscous liquid up to ca 2000 mPa·s can be sampled in.
• 11 available scales
• Graphic LCD can display temperature, sample number, auto sensing oscillation stability, auto data saving, auto data output, data deletion, and battery capacity indicator.
• Long battery life

TECHNICAL FEATURES

  • Mv: Measurement range 0-2g/cm3 / Resolution 0.0001 g/cm3 / Accuracy +/- 0.001 g/cm3
  • Temperature (°C/°F): Measurement range 0-40°C%
  • Automatic temperature compensation automatic (% Brix, °Plato, API, % Alcohol, % sulfuric acid) or
    by free coefficient of temperature compensation (up to 10)
  • Measurement principle: density by diapason method
  • Measurement units: density, temperature compensated density, specific gravity, temperature compensated specific gravity, Brix %, alcohol concentration (in a hydro-alcoholic solution), sulfuric acid concentration, API degree, Baume degree, Plato and Proof degree
  • Calibration: Dry air and pure water, standard sample of density
  • Data memory up to 1100 samples
  • Interface IR to a PC
  • Power supply: 2 LR3 AAA batteries 1.5V
