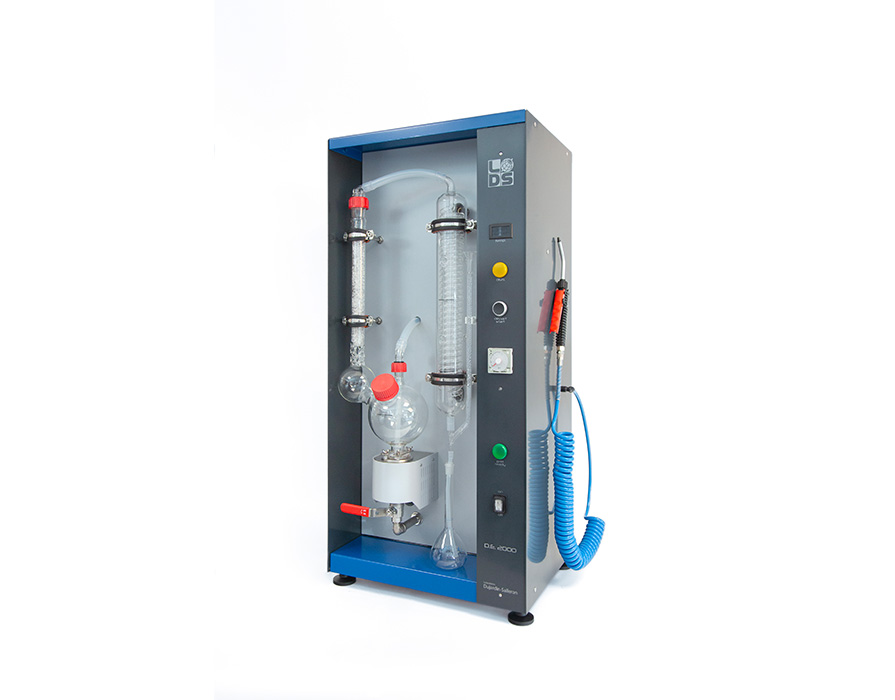

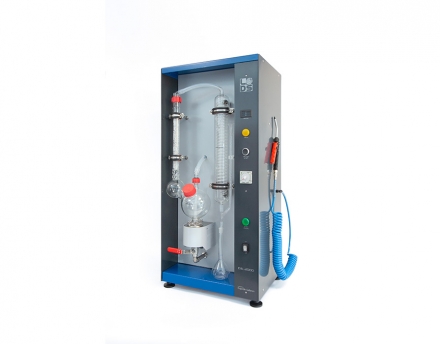

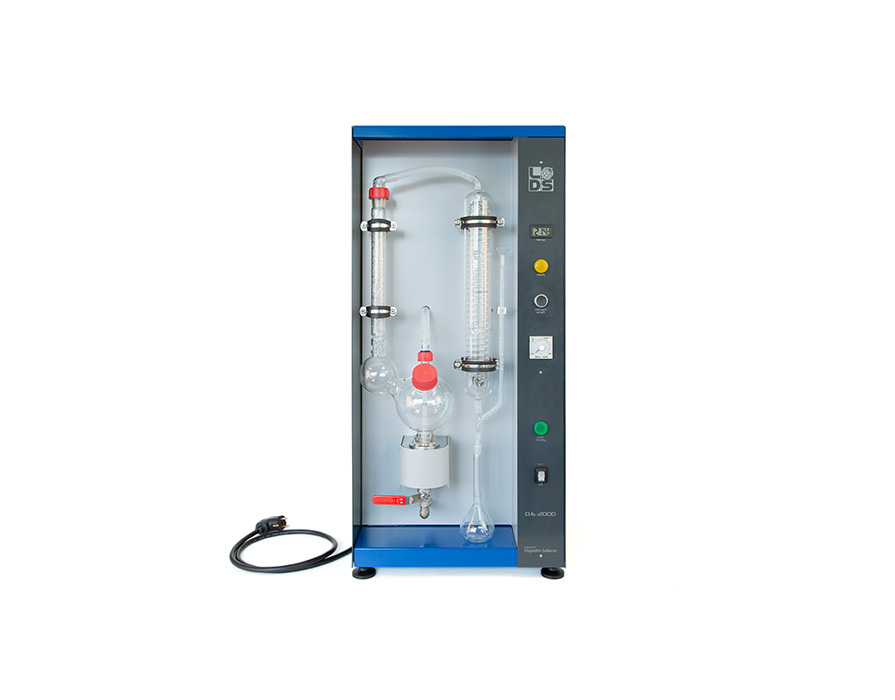

DE 2000 Oenological distillation for wines, musts, liquors

Automatic steam distiller-extractor distillation

This instrument is designed to carry out the distillation of alcohol and the extraction of volatile or sorbic acidity following the official method and according to the European regulation (EEC no.2676/90) and OIV standards in the Compendium of International Methods of Analysis of Wine and Musts.

Add to my quote request
  • 140900- Distiller-extractor DE2000 norm OIV CE
    Quantity:
    Add this item to quote

Références concernées

  • 140900-Distiller-extractor DE2000 norm OIV CE

ADVANTAGES

Fast starting and reliable results make the DE 2000 advisable for laboratories specialized in wine analysis, spirits, fermented beverages, fruit juices and many other agriculture and food industry products (tomato sauces, vinegars, etc...).
  • High strength aluminum steam generator with built-in electric heater.
  • Injection of the required water during the entire process with a dosage pump.
  • Automatic pre-heating of the steam generator and standby mode to wait for the next extraction. A green indicator is on when the instrument is ready.
  • A stainless steel bubbler with waterproof heating rings for an extraction without increasing the initial volume of the sample.
  • Automatic stop of the cooling circulation between distillations
  • Digital thermometer displays permanently the cooling system temperature.
  • A yellow indicator is on during distillation.
  • The instrument starts when the push button is pressed and it ends when the time selected on the timer comes to an end.


TECHNICAL FEATURES

  • Time of the distillation or extraction selected by a timer
  • Automatic stop of the cooling circulation between distillations
  • Built-in steam generator (2800W)
  • Constant display of the cooling system temperature
  • Simple maintenance, easy to access the different parts of the instrument (glassware, steam generator)
  • Short working time: 5 to 6 minutes each operation
  • Power supply: 220V - 50Hz
  • Water supply: minimum pressure 2 bar, recommended temperature 18°C, minimum flow 12 l/min.
  • Dimensions (H x L x D) : 97 x 45 x 36 cm
  • Weight: 20kg

ACCESSORIES INCLUDED

  • Graduated Erlenmeyer flask, wide neck (250ml) (Ref. 615250L)
  • Graduated pipette (10ml – 1/10) (Ref. 604010)
  • Milk of lime 500 ml (Ref. 990007)
  • Antifoam 250ml (Ref. 990002)
  • Tartaric acid, powder (250g) (Ref. 990010)
