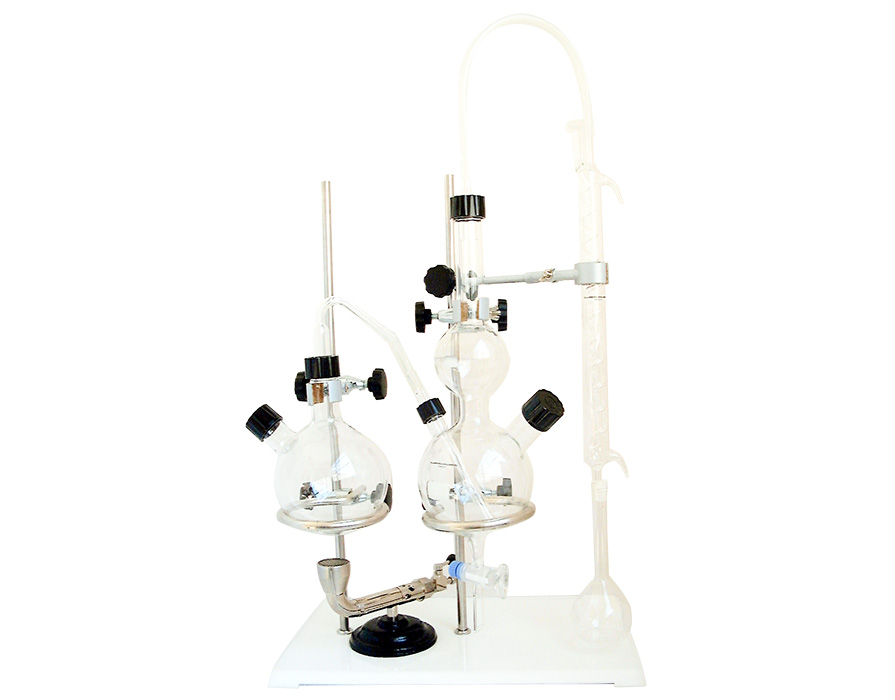

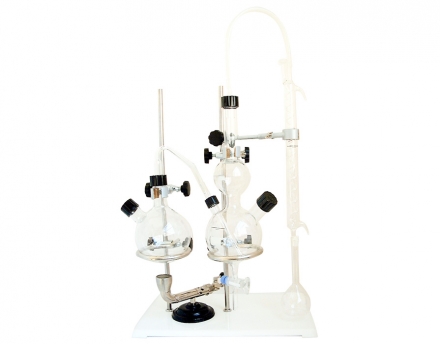

    Distillator-extractor Mothe type

    Classical distillation for alcohol and volatile acidity determination

    This instrument allows a quick steam extraction of water, alcohol, and volatile acids following the official method. It can be used for all types of wines, liquors, musts, even when they contain sugars or solid pieces.

    Download our
    PDF catalogue
    Add to my quote request
    • 140300- Fast extractor Mothe type
      Quantity:
      Add this item to quote

    Références concernées

    • 140300-Fast extractor Mothe type

    PRINCIPLE

    A boiler filled with distilled water produces steam thanks to a gas burner (not included) towards the sample. This steam extracts, depending on the chosen mode, the volatile acids or the alcohol. A coiled condenser condenses and recovers all the steam. The distillate is collected in a volumetric flask.

    TECHNICAL FEATURES

    • Quick steam extraction
    • This apparatus on a stand is equipped with a coiled condenser
    • Heating system not included: a high flow burner (40mm diameter) is recommended


    EQUIPMENT

    • Stand, rod, clamps, and glassware supports
    • Double flask (Ref. 140300/3)
    • A coiled condenser for distillation/extraction (Ref. 140300/2)
    • Volumetric flask for still (200ml) (Ref. 619200)
    • Round-bottom flask 2 necks (Ref. 140300/8)
