Steam extractor Mothe type for volatile acidity

Steam extraction

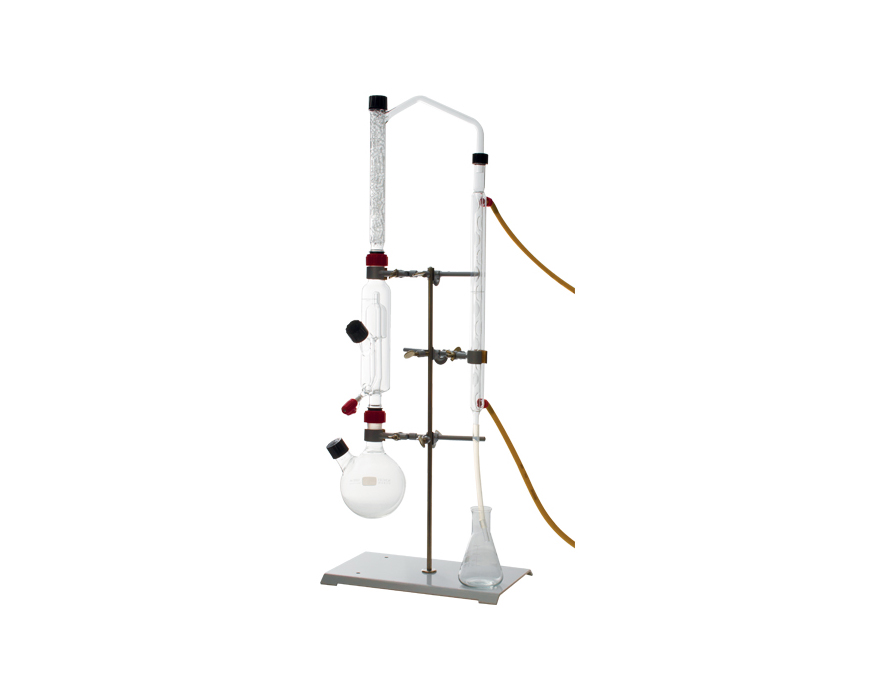

This instrument on a stand is composed by a boiler, an extraction flask, a rectifying column to stop lactic acid vapors, and a coiled condenser. It allows a quick extraction of the volatile acids (titration accessories are not included).

Ajouter à ma demande de devis
  • 118300- Steam extractor, Mothe type for Volatile Acidity
    Add this item to quote

Références concernées

  • 118300-Steam extractor, Mothe type for Volatile Acidity


The volatile acids are separated from the wine with a water steam extraction. Then, a titration of acidity with a standard alkaline solution is run on the distillate.


  • If used following the indicated precautions, this method eliminates the errors caused by volatile acids not belonging to the acetic series
  • The bubbler is specially designed to avoid wine aspiration into the boiler when the heater stops


  • Heating system not included: a high flow burner (40mm diameter) is recommended
  • Extraction time: between 7 and 12 minutes
  • Typical use: 1 to 10 analyses / day
  • Easy to assemble and disassemble thanks to its Rodaviss system


  • A glass boiler with a funnel and a draining valve
  • An ampoule with a bubbler and a draining valve
  • A rectifying column
  • A coiled condenser
  • A reception flask graduated at 100ml
  • A stand with a clip
